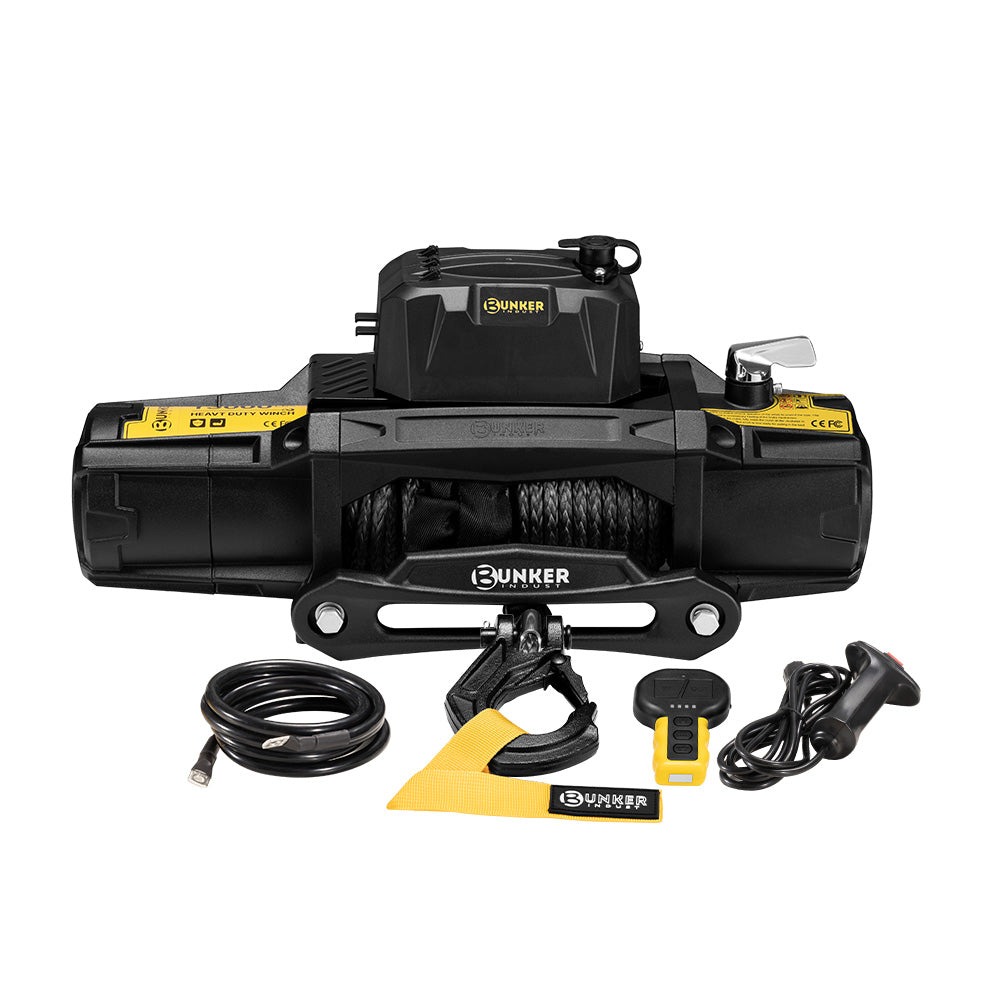

Conquer treacherous muddy swamps, scale imposing rocky cliffs or forge ahead with confidence on uncharted terrain, all empowered by the unmatched capability of Bunker Indust 13,000lbs winch to effortlessly handle up to 5,897kg (13,000lbs), ensuring you have the strength to overcome even the most daunting challenges. Equipped with a 3-stage planetary gear train boasting 195.8:1 ratio, and fortified by a 6.6HP motor, our electric winch ensures unwavering power. The sturdy synthetic rope is crafted with 6,648kg (14,656lbs) breaking strength, standing strong against fraying and breakage. The control box features a DT socket for light bar and a terminal for easy connection of emergency tools, such as air compressor and jump starter. The aluminium housing of our 12 volt winch is fortified with UV-resistant powder coating, ensuring lasting durability. With IP67 waterproof rating to solidify its reliability, our 12V electric winch delivers uncompromising performance across diverse scenarios.
Features
| Housing: | Aluminium |
|---|---|
| Finish: | Matte Black Powder Coating |
| Hawse: | Aluminium |
| Hook: | Forged Steel |
| Waterproof: | IP-67 |
| Rated Line Pull (Single Line): | 5,897kg (13,000lbs) |
| Motor: | DC 12V, 6.6HP/4.8KW, High Performance Series Wound |
| Gear Train: | 3 Stage Planetary |
| Gear Reduction Ratio: | 195.8:1 |
| Free Spooling Clutch: | Sliding Ring Gear |
| Drum Diameter/Length: | Φ 64mm x 224mm (2.52 x 8.82") |
| Brake: | Automatic in-the-Drum |
| Duty Cycle: | Intermittent Per SAE J706 Section 6.2 |
| Mounting Bolt Pattern: | 254mm x 114mm (10 x 4.5") |
| Recommended Battery: | 650CCA |
| Control Mode: | Wired / Wireless Control |
| Full Load Line Speed: | 2.3m/min (7.6 ft/min) |
| No-Load Line Speed: | 7.0m/min (23ft/min) |
| Max Curent at Full Load (A): | 420 |
| Max Output Power of DT Socket (W): | 60 |
| Certification: | CE |
| Synthetic Rope | |
| Material: | UHMWPE |
| Length of Synthetic Rope: | 26.0m (85.30ft) |
| Breaking Capacity: | 6,648kg (14,656lbs) |
| Remote Controller | |
| Operating Band: | 433MHz |
| Remote Control Distance: | 18.0m (59.1ft) |
| Input Voltage: | 5V |
| Waterproof: | No |
| Package Size: | 586mm(L) x 325mm(W) x 245mm(H) |
| Package Weight: | 28.2KGS |
2 Years Warranty For Electric Components
3 Years Warranty For Mechanical Components
1 Year Warranty For Synthetic Rope
