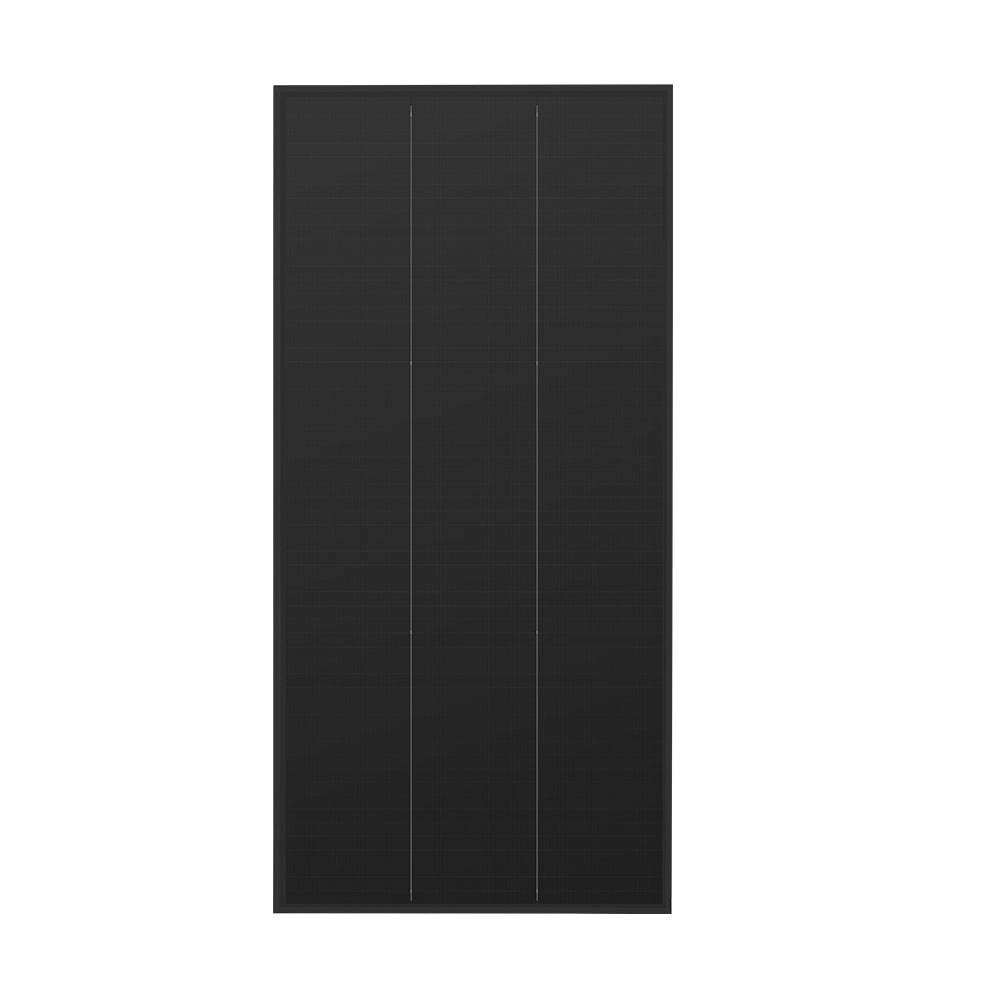

If you want solar panels that deliver higher energy yields, look no further than our shingled bifacial solar panels! They capture sunlight from both sides, providing 15% more energy compared to mono facial panels. Shingle technology also elevates efficiency, generating more power even in low-light conditions. Thanks to its ability to capture sunlight from both sides and the incorporation of PERC and bypass diodes, this 130W bifacial solar panel maximizes energy output on cloudy days and performs exceptionally on snowy days. The back side is always available, ensuring a continuous supply of solar power for your off-grid life. And that's not all – the shingled technology boosts output by 15~20% compared to traditional solar panels. Wired in parallel, these shingled solar panels significantly reduce losses and eliminating the hot spot effect caused by shade. On top of that, its IP-68 rating allows it to defy harsh conditions, while no visible circuitry gives it a sleek look.
Features
| Material: | Shingled Cells |
|---|---|
| Front Glass: | Tempered Glass |
| Frame: | Aluminium |
| Colour: | Black |
| Wire Size: | 2.5mm2 |
| Max Power at STC: | 130W(Front)/72W(Rear) |
| Max. System Voltage: | 500V |
| Open Circuit Voltage (VOC): | 24.27V |
| Short Circuit Current (ISC): | 6.37A(Front)/5.21A(Rear) |
| Max Power Voltage (VMP): | 20.42V |
| Max Power Current (IMP): | 6.37A |
| Power Tolerance: | 0~3% |
| Output Tolerance: | 0~3% |
| Module Efficiency: | 22% |
| Bifaciality Coefficients: | 55.3% |
| Operating Temperature: | -40℃~80℃ |
| Nominal Operating Cell Temerature (NOCT): | 25℃ |
| IP Rating: | IP-68 |
| Wind Resistance: | 2,400Pa |
| Snow Load: | 5,400Pa |
| Certifications: | CE/RoHS |
| Package Size: | 118 x 5.80 x 56.30cm |
| Gross Weight: | 8kg |
5 Year Warranty
