ATEM POWER 12V 20A DC to DC Battery Charger Dual Battery System Kit + Smart Hub
Ads Details
Sydney, New South Wales
$395
2 years ago
Description

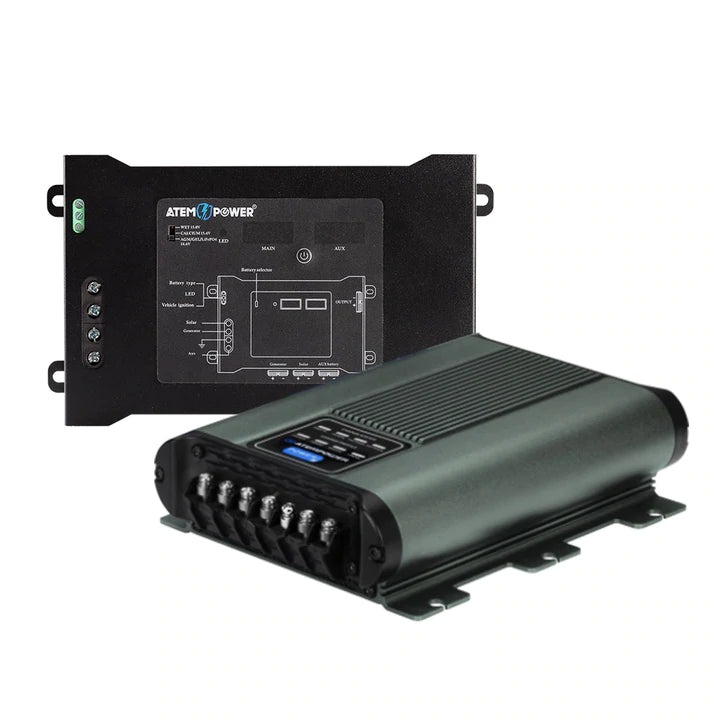

Gear up for your adventures with the ultimate dual-battery solution: the ATEM POWER 20A DC to DC charger. With its advanced features and superior performance, this DC-DC charger is the perfect companion to keep your batteries fully charged and ready for action, ensuring you never run out of power when you need it most. The ATEM POWER DC to DC charger is an upgraded, automatic multi-stage charger that delivers up to 20A of power. It charges Lead Acid, AGM, Gel, calcium, LiFePO4 batteries efficiently, eliminating compatibility concerns. Moreover, It seamlessly adapts to your vehicle's smart alternator and maximizes solar power through the integrated MPPT controller for optimal utilization. This DC to DC smart hub comes with dual voltage meters to view the real-time voltage status of the main battery & the auxiliary battery. It features marks for all terminals & connectors on the top panel and colour coded Anderson plugs for easy connection
Features
- Battery Re-selection Made Easy: Switch batteries effortlessly! Our ATEM POWER DC to DC charger allows quick re-selection by long-pressing "POWER."
- Smart Alternator Compatible: Worried about compatibility? Our charger works flawlessly with smart alternators in 4x4s, ensuring a seamless power connection.
- Boost Efficiency with MPPT: This DC to DC charger includes a MPPT controller, increasing charging efficiency by up to 30% when connected to solar panels.
- Dual Input Power: Our charger utilizes the DC source or solar power, ensuring a stable and consistent energy source for your auxiliary battery.
- Advanced Charging Algorithm: Our smart multi-stage charging process optimally charges your batteries, delivering them to their peak levels for extended use.
- Smart Protection: Safeguard your device against solar input overload, over-charge, short circuit, over-temperature, thermal load, and reverse polarity.
- Wide Battery Compatibility: With our upgraded charging profile, this DC to DC charger is compatible with Lead Acid, AGM, Gel, calcium, LiFePO4 batteries.
- Ultimate Versatility: This compact DC to DC charger is a must-have for 4WDs, caravans, RVs, trucks, campers, trailers, campervans, commercial vehicles, and boats.
- Convenient and Intuitive: The LED indicator provides real-time charging stage updates, while the integrated memory function enhances charging convenience.
- Please note: always refer to the wiring diagram in this listing for the latest wiring setup of the product as the user manual might be for previous version.
| DC-DC charger | |
|---|---|
| Input: | DC Battery: 13.0~16.0Volts / Solar Input: 16.0-25.0 Volts |
| Output/Charging Voltage: | 14.4~15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts) |
| Output Current: | DC Output: 20A / Solar Output: 20A |
| Minimum Start Voltage: | 2.5 Volts-For battery being charged |
| Bulk Charge Voltage: | 14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(LiFePO4 ) |
| Operational Temperature: | -10℃~45℃ |
| Absorption: | Constant voltage with automatic amperage control |
| Float Charge Voltage: | 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium) |
| Float Charge Current: | 100mA |
| Battery Range: | 60 to 600Ah |
| 0-1 Metres: | 12AWG |
| 1-5 Metres: | 8 AWG |
| Smart Hub | |
| Housing Material: | Steel |
| Amperage Rating: | 50A |
| Compatible Batteries: | Wet, Calcium, AGM, Gel, LiFePo4 |
| Package Dimension: | 31.7 x 23.8 x 15cm |
| Gross Weight: | 1.32kg |
Package Includes
- 1 x ATEM POWER 20A DC-DC Charger
- 1 x ATEM POWER DC to DC Smart Hub
- 2 x Installation Manual
- 4 x Anderson Plugs
Warranty
1 Year Warranty
