We have made up this amazing package at this CRAZY price to help Aussies enjoy their camping trips. In this package you will get the 135ah Deep cycle AGM battery with also the battery box with all your Anderson plugs/12v sockets and USB plugs also including the isolator and circuit breaker. To charge this bloke is our 200watt folding solar panel with the 5mt lead including a Anderson plug on the end to plug straight into your battery box. We will also chuck in a carry bag for your solar panel to keep it protected while you travel.

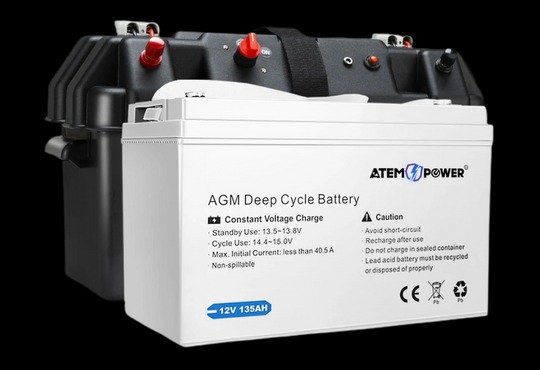

Specs on battery
135Ah battery:
Greater cycle life
Max. cycle life of 1400 cycles
Industry-leading build life
Higher sulfation resistance
Longer storage life
Maintenance-free
Superior deep discharge recovery
Better low temperature performance
High oxygen-recombination efficiency
Advanced AGM technology
Spill-proof, leak-proof and non-gassing
Bolt-down terminals
Convenient carry handle
Battery box:
Protective and portable
User-friendly
Digital voltage indicator
10A resettable circuit breaker
Two USB ports
Cigarette lighter socket
Anderson plugs
Positive and negative terminals
Sturdy housing
Heavy-duty carry handles
Tie down strap
Specifications:
135Ah battery:
Overall dimensions: 33cm x 17.1cm x 21.6cm
Approx. weight: 29.5kg
Container material: ABS
Terminals: Bolt-down
Nominal voltage: 12V
Rated capacity (10-hour rate): 135Ah
Internal resistance: Approx. 5.0mΩ
Maximum discharge current: 1200A (5s)
Maximum charge current: 25A
Operating temperature ranges:
Discharge: -15°C to 50°C
Charge: -20°C to 50°C
Storage: -20°C to 50°C
Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
Float charge: 13.5 to 13.8V
Equalize charge: 13.8 to 14.1V
Cycle charge: 14.4 to 15.0V
Self-discharge 3% of capacity declined per month at 25℃
Battery box:
Overall dimensions: 43.5cm x 25.5cm x 30cm
Inner dimensions: 36cm x 20.5cm x 24cm
Solar Specs
Solar panels provide a way to capture the sun’s energy and put it to power your batteries. But ATEM POWER has taken a step further by integrating the newest shingled solar cell technology into its shingled folding solar panel/shingled panel with the key advantages: more power, improved reliability and more aesthetic. This 200W shingled folding solar panel avoids the use of ribbons, busbars, and soldering processes, the cells are cut into 5 or 6 strips then joined together using electrically conductive adhesives (ECA). So there is nothing but pure cell, and you’ll get 15~20% output than traditional folding solar panels, while significantly reducing the losses and hot spot effect caused by shade. This IP-65 rated 200W shingled folding solar panel/shingled solar panel allows you to stay in charge wherever you go. From camping to outdoor activities, unfold this shingled folding solar panel and start capturing solar power in seconds.
Features
| Cell Type: | Shingled Module Grade A Monocrystalline Cell |
|---|---|
| Max. Power(PM): | 200W |
| Open-Circuit Voltage(VOC): | 22.32V |
| Short-Circuit Current(ISC): | 11.78A |
| Max. Power Voltage(VMP): | 18.0V |
| Max. Power Current(IMP): | 11.1A |
| Max. System Voltage: | 1000V |
| Operating Temperature Range: | -40°C ~ 85°C |
| Waterproof rating: | IP-65 |
| Certifications: | CE, ROHS |
| Open Size: | 1110*980*25 mm |
| Folded Size: | 1110*490*50 mm |
| Warranty: | 3 Years |
Package includes:
1x135ah Deep Cycle Battery
1x Battery Box
1x ATEM POWER 200W Shingled Solar Panel
1x ATEM POWER 20A MPPT Controller
1x Anderson Extension Cable with Alligator Clips
1x Carry Bag
1x User Manual
